KX-25

CASE ERECTOR

KX-25 case erector adopts the principle of vertical case erecting and can automatically complete case picking, case erecting, bottom cover folding and bottom side sealing. Special design makes case forming process more stable, achieves high pass rate of case erecting and reduces case damage effectively.

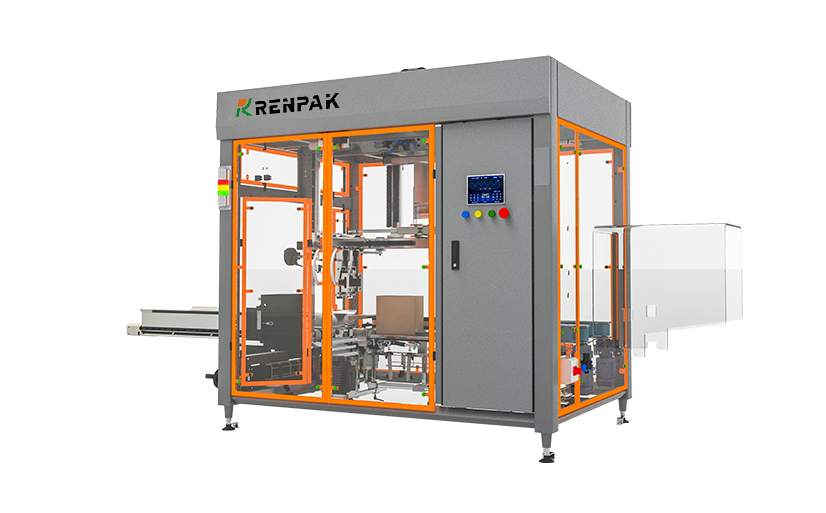

KX-25 CASE ERECTOR

Quick changeover

Adjusting parts have clear and convenient ruler and adjusting mechanism and changeover time is less than 3 minute

High durability design

Welding frame structure; extended blank magazine with guide rail supports for large load

Vertical case feeding mode

Blank magazine can be expanded and stacking height and case feeding mode conforms to ergonomic designs

High safety standard

Conform to PLD grade CE safety standard and design concept of Zero Access

Detection alarm function

Detection alarms for tape shortage, tape breakage, tape non-cutting, case stuck etc.

Hygienic design concept

Reduce material accumulation surface and eliminate horizontal cavity design

Visualization and intervention

Transparent design for operation and observation easily, with pressure and energy consumption statistics, all components convenient for access and operation to improve the efficiency of maintenance and restored operation

Accurate and reliable servo control

Using accurate and reliable servo controls for case picking, opening and pushing to improve running stability of equipment, quicker, more flexible and quieter than using pneumatic drivers

Packml software system architecture

Packml software system architecture, multilingual computer-human interaction (in Chinese and English), perfect friendly alarm and troubleshooting tips and standard interfaces for information expansion requirements

Automatic case erecting equipment KX-25 CASE ERECTOR

Case Erecting Speed
25 cases per min （Note 1）
Adaptable Case Dimension
L(200〜620mm)×W(130〜400mm)×C(150〜650mm)
Adaptable Case Type
Corrugated case blank RSC
Power
2.2KW
Color
RAL9007 Gray aluminum color
Frame Material
Carbon steel with powder coating
PLC
Siemens
Servo Control
Siemens
Touch Screen
Siemens
Sensor
Banner, Sick
Cylinder
Festo
Three-phase Asynchronous Gear Motor
SEW
Weight
1500kg
Dimension
L3750mm×W1620mm×H2480mm

Note1: Options and case type will affect the actual speed.
