JDR

PALLETIZER

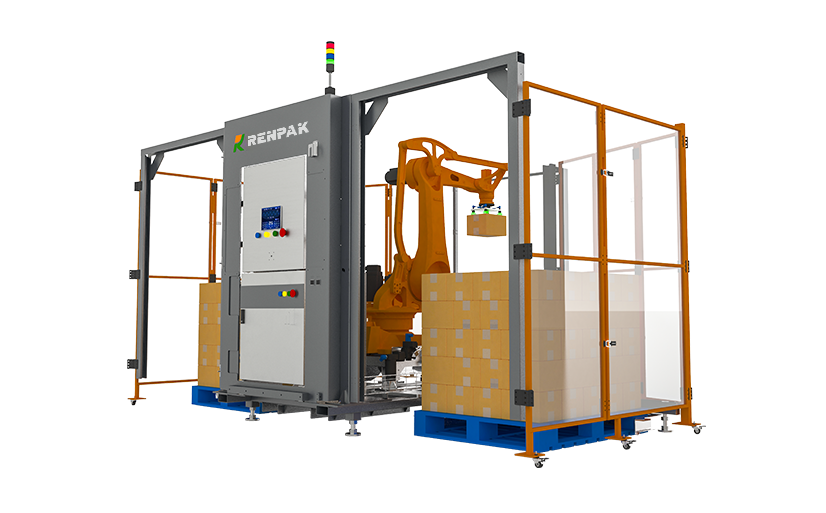

JDR movable robotic palletizer is a palletizing solution designed for seasonal production. It uses a industrial robot for palletizing, flexible and suitable for a wide range of cases and bags. The stacking pattern is configured on the HMI, which can be easily mastered by on-site operators. As advanced safety control is built into the machine, it is without downtime when picking and placing pallets which maintains high productivity and reduces buffer conveying length in the palletizing process. The machine has a built-in vacuum source and a folding fence, which can be completed the switch between different production lines in 30 minutes.

JDR PALLETIZER

High load

The robot load can reach 60kg.

Safe and stable

Adopt four-light curtain safety controller toensure safety under continuous operation; With a baseextension bracket, it can run smoothly, no need to be fixedto the ground.

Compact

Integrate the control cabinet, main unit, vacuum source and connectors on a base. With 2 palletizing positions, no downtime for changing the pallet.

High flexibility

With folding fence, fast movement between different production lines by forklift. Stacking pattern can be configured on the HMI and the existing patterns can be switched by one button.

Automatic case palletizing equipment JDR PALLETIZER

Dimension
L=4380mm/2010mm（Folded），W=3300mm，H=2550mm
Weight
1600kg*
Frame Material
Carbon steel with powder coating*
Palletizing Speed
Max 10 cycles/min
Power
12KW
Loading Capacity
≤60kg*
Ambient Temperature
0°C -45°C
Relative Humidity
≤75%（No condensation）
Power Supply
Three-phase five-wire system，380V AC（±10%）50±1Hz
Air Supply
0.5-0 6MPa
Adaptable Pallet Dimension
L 1200mm X W 800/1000mm X H 150mm
Adaptable Case Dimension
L 300-500mm W 250-350mm H 150-300mm*
Stacking Height
1580mm(Note)

Note:: Standard configuration, can be customized.

Application Cases

Food & Beverages Food and beverages include alcohol, beverage, snacks, fruits, vegetables, seasonings and etc. Food and beverages is a high-frequency consumption industry, Which requires the packaging lines are flexible, efficient, hygienic, and safe.

Dairy The secondary packaging solutions guarantee the dairy packing, palletizing, and transportation, which brings consumers exceptional customers experience.

Industrial Chemicals The industrial chemical industry requires a high level of safety and security for its employees. Fully automated packaging lines effectively address the safety concerns of employees while providing efficient production capacity.
