ZXCD

CASE PACKER

The equipment is designed for regular carton material side loading, at its infeed part there are carton turning mechanism and stack-in-order mechanism. It is also equipped with automatic case erecting and sealing. The unique design for double-station on one side external adhevise tape, allows the tape replacement without stopping. The safety design of the whole machine follows the CE standard to ensure safe and reliable operation.

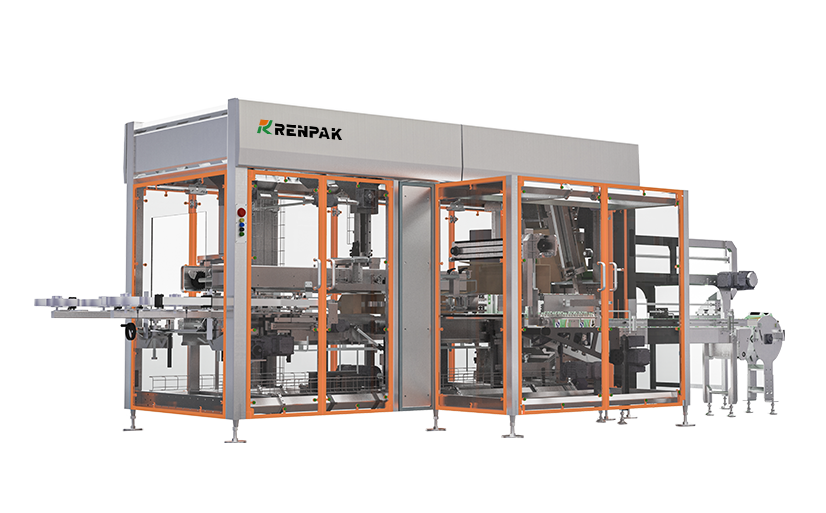

ZXCD CASE PACKER

Visualization

Transparent design for operation and observation easily

Hygienic design

Reduce material accumulation surfaces and eliminate horizontal cavity designs

High integration

The case erecting and sealing are automatically integrated

High flexibility

The case blank magazine, case picking, conveying and sealing mechanism can be adjusted according to the case size

Automatic case packing equipment ZXCD CASE PACKER

Case Type
RSC
Adaptable Case Dimension
L (250-500) mm X B (150-400) mm X H (150-400) mm
Product Type
Regular carton
Product Infeed Speed
150 pcs/min
Power
6.5 KW
Frame Material
Carbon steel with powder coating
PLC
Siemens
Servo Control
Siemens
Sensor
Banner, Sick
Cylinder
SMC
Three-phase Asynchronous Gear Motor
SEW
Exterior Dimension
L7720 mm X B2600 mm X H2260 mm(Note)

Note:: 1. The length would be 3 meters if the case blank magazine is contained.
